    Products > Temperature and Humidity

    225-RHPX Humidity and Temperature Transmitter

    RHPX Humidity and Temperature Transmitter
    225-RHPX Humidity and Temperature Transmitter

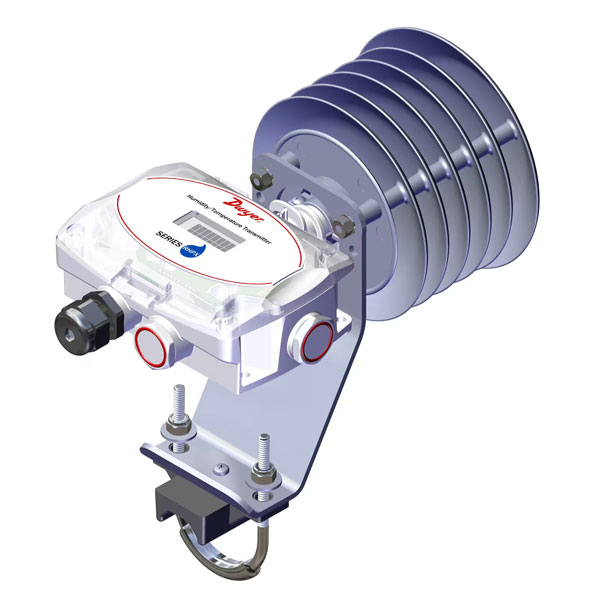

    The 225-RHPX Humidity and Temperature Transmitter offers high accuracy, long term stability, and reliable operation. It includes a solar radiation shield and is protected by a UV rated outdoor enclosure.
    Product Details

    The 225-RHPX Humidity and Temperature Transmitter, offers high accuracy, long-term stability, and reliable operation. It includes a solar radiation shield and is protected by a UV-rated outdoor enclosure. The default output is 4-20 mA and is compatible with many systems. In addition, the outputs are field-selectable (4-20 mA or 0-5 V dc, 0-10 V dc at 5 mA max), which makes it easy to integrate into many monitoring situations.

    The pipe mounting bracket fits 3/4" to 1-1/2" iron pipes.

    Specifications

    Probe StyleHDPE filter
    Humidity Measurement Range0 to 100% RH
    Relative Humidity Accuracy±2% (10 to 90% RH) @ 25 °C
    Temperature Measurement Range-40 °C to 60 °C (-40 °F to 140 °F).
    Temperature Sensor Accuracy, Solid State±0.9°F @ 77°F (±0.5°C @ 25°C)
    Electrical ConnectionRemovabe Screw Terminal Block
    Current Output Range4 to 20 mA
    Voltage Output Range0 to 5 Vdc, 0 to 10 Vdc
    Supply Voltage4-20 mA: 10 to 35 Vdc; Vout: 15 to 35 Vdc or 15 to 29 Vac
    Enclosure RatingsIP66
    MaterialsUL 94 V-0
    Mounting OrientationPole Mount or Wall Mount
    Process Connection Size1/2″ NPS Thread, Cable gland included
    ComplianceBLT, CE, UL-2043*, UL-60335-2-40**
    Weight1247.4 g
    * UL 2043 compliance limited to models:
    RHPX-XS(B,S,W) Wall Mount
    RHPX-XS(D,E)-XX-X Plastic Probe Duct Mount without LCD
    RHPX-XS(F,G)-XX-X SSTL Duct Mount with LCD
    RHPX-XL(B,S,W) Large Wall Mount without LCD
    RHPX-XL(H) Large Wall Mount without LCD & Solar Radiation Shield
    ** Meets UL-60335-2 clause 30.103DV.1 through UL2043 compliance
