The 260-2510 Standard Rain and Snow Gauge is an all aluminum rain gauge with a total capacity of 20" of rainfall. The upper portion of the funnel is cylindrical in shape and is turned to a sharp edge. Rainwater falling into the funnel is delivered into the receiver. The ratio is 10 to 1, so that 1" of rainfall delivers 10" of water to the receiver. The capacity of the receiver is 2" of rainfall. Any excess overflows into the outer chamber so it can be measured after the quantity in the receiver has been recorded and removed. The gauge can be read to 0.01".
When used as a snow gauge, the receiver and funnel are removed. Snowfall is collected in the overflow can and melted for measurement with the receiver and dipstick.
A black G-10 fiberglass epoxy laminate measuring stick with both english and metric markings is included. An optional tripod support is available.

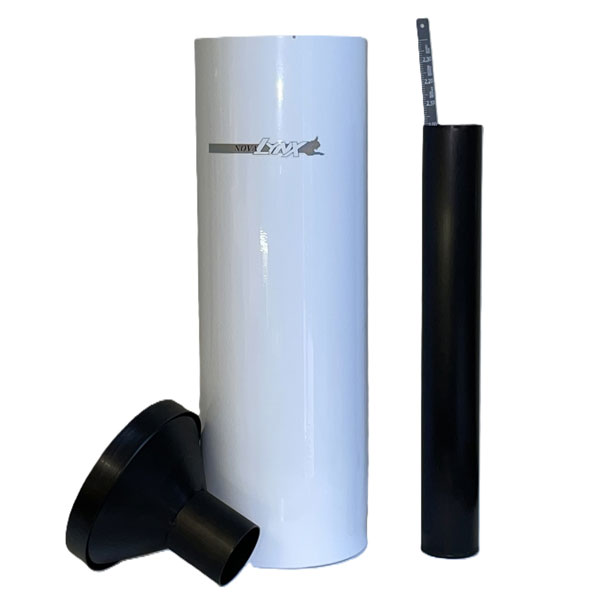

Photo shows rain gauge and optional tripod support.
